zrythm::gui::qquick::AudioClipWaveformCanvasItem Class Reference

AudioClip-specific waveform canvas. More...

#include <src/gui/qquick/audio_clip_waveform_canvas_item.h>

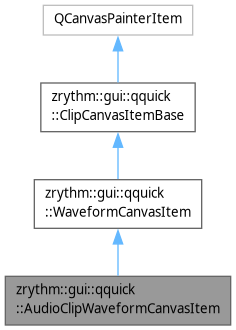

Inheritance diagram for zrythm::gui::qquick::AudioClipWaveformCanvasItem:

Collaboration diagram for zrythm::gui::qquick::AudioClipWaveformCanvasItem:

Signals
void	audioClipChanged ()
void	tempoMapChanged ()
Signals inherited from zrythm::gui::qquick::WaveformCanvasItem
void	waveformColorChanged ()
void	outlineColorChanged ()
Signals inherited from zrythm::gui::qquick::ClipCanvasItemBase
void	referenceWidthChanged ()
void	referenceXChanged ()
void	loopPreviewChanged ()

Public Member Functions
	AudioClipWaveformCanvasItem (QQuickItem *parent=nullptr)
structure::arrangement::AudioClip *	audioClip () const
void	setAudioClip (structure::arrangement::AudioClip *clip)
QObject *	tempoMap () const
void	setTempoMap (QObject *tempoMap)
bool	hasLoop () const
	Only wrap when the clip is actually looped.
int64_t	loopStartFrame () const
	Sample-space offset of the loop-start position relative to clip start (content-space, not buffer-space).
int64_t	loopEndFrame () const
int64_t	clipStartFrame () const
int64_t	loopRegionBufferStart () const
	Where the loop region begins in the serialized buffer.
std::vector< int64_t >	computeTimelineFrameMapping (int canvas_width, qreal reference_width, qreal reference_x) const
	Computes a per-pixel frame mapping that accounts for the tempo map's non-linear tick-to-sample conversion.
Public Member Functions inherited from zrythm::gui::qquick::WaveformCanvasItem
	WaveformCanvasItem (QQuickItem *parent=nullptr)
QCanvasPainterItemRenderer *	createItemRenderer () const override
QColor	waveformColor () const
void	setWaveformColor (const QColor &color)
QColor	outlineColor () const
void	setOutlineColor (const QColor &color)
const juce::AudioSampleBuffer *	audioBuffer () const
uint64_t	bufferGeneration () const
	Monotonically increasing counter bumped on each buffer change.
Public Member Functions inherited from zrythm::gui::qquick::ClipCanvasItemBase
	ClipCanvasItemBase (QQuickItem *parent=nullptr)
qreal	referenceWidth () const
void	setReferenceWidth (qreal w)
qreal	referenceX () const
void	setReferenceX (qreal x)
qreal	effectiveReferenceWidth () const
	Returns referenceWidth if set (> 0), otherwise the actual width().
bool	loopPreview () const
	When true, the renderer wraps content into the loop region even if the clip is not currently looped.
void	setLoopPreview (bool preview)

Properties
zrythm::structure::arrangement::AudioClip *	audioClip
QObject *	tempoMap
Properties inherited from zrythm::gui::qquick::WaveformCanvasItem
QColor	waveformColor
QColor	outlineColor
Properties inherited from zrythm::gui::qquick::ClipCanvasItemBase
qreal	referenceWidth
qreal	referenceX
bool	loopPreview

Additional Inherited Members
Protected Member Functions inherited from zrythm::gui::qquick::WaveformCanvasItem
void	notifyBufferChanged ()
	Bumps the generation counter and schedules a repaint.
Protected Attributes inherited from zrythm::gui::qquick::WaveformCanvasItem
juce::AudioSampleBuffer	audio_buffer_

Detailed Description

AudioClip-specific waveform canvas.

Handles AudioClip buffer serialization and re-serialization on clip property changes (loop, bounds, fades).

Uses a cached snapshot of clip properties to avoid redundant re-serializations when multiple signals fire for the same change.

Definition at line 33 of file audio_clip_waveform_canvas_item.h.

Member Function Documentation

audioClip()

structure::arrangement::AudioClip * zrythm::gui::qquick::AudioClipWaveformCanvasItem::audioClip ( ) const

inline

Definition at line 44 of file audio_clip_waveform_canvas_item.h.

clipStartFrame()

int64_t zrythm::gui::qquick::AudioClipWaveformCanvasItem::clipStartFrame ( ) const

inline

Definition at line 62 of file audio_clip_waveform_canvas_item.h.

computeTimelineFrameMapping()

std::vector< int64_t > zrythm::gui::qquick::AudioClipWaveformCanvasItem::computeTimelineFrameMapping	(	int	canvas_width,
		qreal	reference_width,
		qreal	reference_x ) const

Computes a per-pixel frame mapping that accounts for the tempo map's non-linear tick-to-sample conversion.

Called by the renderer during synchronize() so the waveform visually aligns with what plays at each timeline position.

hasLoop()

bool zrythm::gui::qquick::AudioClipWaveformCanvasItem::hasLoop ( ) const

inline

Only wrap when the clip is actually looped.

Non-looped clips may still have default loop positions, which would cause false wrapping.

Definition at line 52 of file audio_clip_waveform_canvas_item.h.

loopEndFrame()

int64_t zrythm::gui::qquick::AudioClipWaveformCanvasItem::loopEndFrame ( ) const

inline

Definition at line 61 of file audio_clip_waveform_canvas_item.h.

loopRegionBufferStart()

int64_t zrythm::gui::qquick::AudioClipWaveformCanvasItem::loopRegionBufferStart ( ) const

inline

Where the loop region begins in the serialized buffer.

The buffer layout is: [intro: clip_start→loop_end] [loop: loop_start→loop_end] repeated. So the loop region starts at frame (loop_end - clip_start).

Definition at line 67 of file audio_clip_waveform_canvas_item.h.

loopStartFrame()

int64_t zrythm::gui::qquick::AudioClipWaveformCanvasItem::loopStartFrame ( ) const

inline

Sample-space offset of the loop-start position relative to clip start (content-space, not buffer-space).

Definition at line 60 of file audio_clip_waveform_canvas_item.h.

tempoMap()

QObject * zrythm::gui::qquick::AudioClipWaveformCanvasItem::tempoMap ( ) const

inline

Definition at line 47 of file audio_clip_waveform_canvas_item.h.

Property Documentation

audioClip

zrythm::structure::arrangement::AudioClip * zrythm::gui::qquick::AudioClipWaveformCanvasItem::audioClip

readwrite

Definition at line 38 of file audio_clip_waveform_canvas_item.h.

tempoMap

QObject * zrythm::gui::qquick::AudioClipWaveformCanvasItem::tempoMap

readwrite

Definition at line 39 of file audio_clip_waveform_canvas_item.h.

---

The documentation for this class was generated from the following file:

• src/gui/qquick/audio_clip_waveform_canvas_item.h
