zrythm::gui::qquick::ClipCanvasItemBase Class Reference

Base for clip canvas items. More...

#include <src/gui/qquick/clip_canvas_item_base.h>

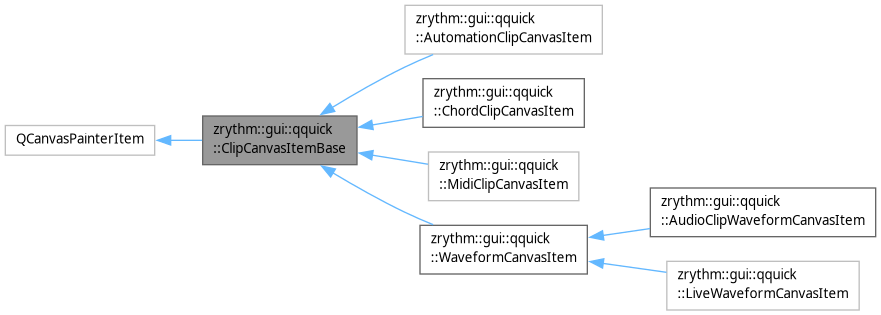

Inheritance diagram for zrythm::gui::qquick::ClipCanvasItemBase:

Collaboration diagram for zrythm::gui::qquick::ClipCanvasItemBase:

Signals
void	referenceWidthChanged ()
void	referenceXChanged ()
void	loopPreviewChanged ()

Public Member Functions
	ClipCanvasItemBase (QQuickItem *parent=nullptr)
qreal	referenceWidth () const
void	setReferenceWidth (qreal w)
qreal	referenceX () const
void	setReferenceX (qreal x)
qreal	effectiveReferenceWidth () const
	Returns referenceWidth if set (> 0), otherwise the actual width().
bool	loopPreview () const
	When true, the renderer wraps content into the loop region even if the clip is not currently looped.
void	setLoopPreview (bool preview)

Properties
qreal	referenceWidth
qreal	referenceX
bool	loopPreview

Detailed Description

Base for clip canvas items.

During a resize drag the delegate gets wider or narrower, but the content inside should keep its original density. referenceWidth tells the renderer "pretend you are this many pixels wide" regardless of the actual width. referenceX shifts the content left edge (used when resizing from the start). Both default to 0, meaning "use the real width / no offset".

Definition at line 20 of file clip_canvas_item_base.h.

Constructor & Destructor Documentation

ClipCanvasItemBase()

zrythm::gui::qquick::ClipCanvasItemBase::ClipCanvasItemBase ( QQuickItem * parent = nullptr )

inlineexplicit

Definition at line 29 of file clip_canvas_item_base.h.

Member Function Documentation

effectiveReferenceWidth()

qreal zrythm::gui::qquick::ClipCanvasItemBase::effectiveReferenceWidth ( ) const

inline

Returns referenceWidth if set (> 0), otherwise the actual width().

Definition at line 59 of file clip_canvas_item_base.h.

loopPreview()

bool zrythm::gui::qquick::ClipCanvasItemBase::loopPreview ( ) const

inline

When true, the renderer wraps content into the loop region even if the clip is not currently looped.

Used during loop-resize drag of a non-looped clip so the user can preview the looped content.

Definition at line 67 of file clip_canvas_item_base.h.

referenceWidth()

qreal zrythm::gui::qquick::ClipCanvasItemBase::referenceWidth ( ) const

inline

Definition at line 38 of file clip_canvas_item_base.h.

referenceX()

qreal zrythm::gui::qquick::ClipCanvasItemBase::referenceX ( ) const

inline

Definition at line 48 of file clip_canvas_item_base.h.

setLoopPreview()

void zrythm::gui::qquick::ClipCanvasItemBase::setLoopPreview ( bool preview )

inline

Definition at line 68 of file clip_canvas_item_base.h.

setReferenceWidth()

void zrythm::gui::qquick::ClipCanvasItemBase::setReferenceWidth ( qreal w )

inline

Definition at line 39 of file clip_canvas_item_base.h.

setReferenceX()

void zrythm::gui::qquick::ClipCanvasItemBase::setReferenceX ( qreal x )

inline

Definition at line 49 of file clip_canvas_item_base.h.

Property Documentation

loopPreview

bool zrythm::gui::qquick::ClipCanvasItemBase::loopPreview

readwrite

Definition at line 26 of file clip_canvas_item_base.h.

referenceWidth

qreal zrythm::gui::qquick::ClipCanvasItemBase::referenceWidth

readwrite

Definition at line 24 of file clip_canvas_item_base.h.

referenceX

qreal zrythm::gui::qquick::ClipCanvasItemBase::referenceX

readwrite

Definition at line 25 of file clip_canvas_item_base.h.

---

The documentation for this class was generated from the following file:

• src/gui/qquick/clip_canvas_item_base.h
