TrackLane_v1 Struct Reference

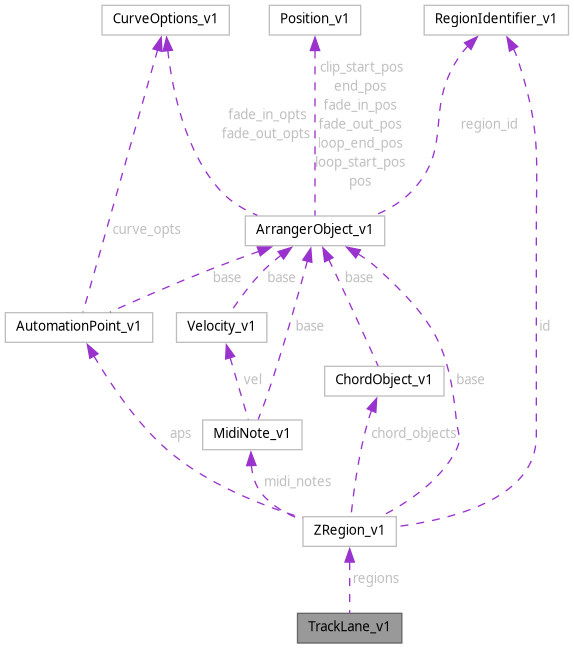

Collaboration diagram for TrackLane_v1:

Data Fields
int	schema_version
int	pos
char *	name
double	height
int	mute
int	solo
ZRegion_v1 **	regions
int	num_regions
uint8_t	midi_ch

Detailed Description

Definition at line 10 of file track_lane.h.

Field Documentation

height

double TrackLane_v1::height

Definition at line 15 of file track_lane.h.

midi_ch

uint8_t TrackLane_v1::midi_ch

Definition at line 20 of file track_lane.h.

mute

int TrackLane_v1::mute

Definition at line 16 of file track_lane.h.

name

char* TrackLane_v1::name

Definition at line 14 of file track_lane.h.

num_regions

int TrackLane_v1::num_regions

Definition at line 19 of file track_lane.h.

pos

int TrackLane_v1::pos

Definition at line 13 of file track_lane.h.

regions

ZRegion_v1** TrackLane_v1::regions

Definition at line 18 of file track_lane.h.

schema_version

int TrackLane_v1::schema_version

Definition at line 12 of file track_lane.h.

solo

int TrackLane_v1::solo

Definition at line 17 of file track_lane.h.

---

The documentation for this struct was generated from the following file:

• src/gui/backend/backend/cyaml_schemas/dsp/track_lane.h
