Base class for timeline data providers. More...

#include <src/structure/arrangement/timeline_data_provider.h>

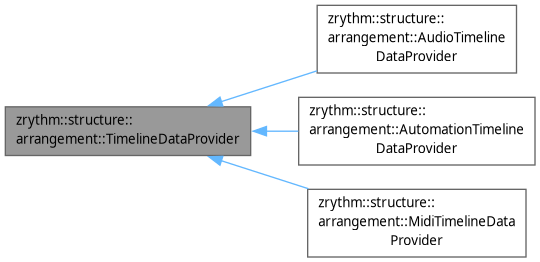

Inheritance diagram for zrythm::structure::arrangement::TimelineDataProvider:

[legend]

Collaboration diagram for zrythm::structure::arrangement::TimelineDataProvider:

Public Types
using	IntervalType = std::pair<units::sample_t, units::sample_t>

Public Member Functions
	TimelineDataProvider (QObject *parent=nullptr)
template<ClipObject ClipType>
void	generate_events (this auto &self, const dsp::TempoMap &tempo_map, utils::RangeOf< const ClipType * > auto clips, utils::ExpandableTickRange affected_range)
	Generate the event sequence to be used during realtime processing.
virtual void	clear_all_caches ()=0
virtual void	remove_sequences_matching_interval_from_all_caches (IntervalType interval)=0
virtual const dsp::TimelineDataCache *	get_base_cache () const =0

Protected Member Functions
virtual dsp::TimelineDataCache *	get_base_cache ()=0

Protected Attributes
dsp::ITransport::PlayState	last_seen_transport_state_
	Last transport state we've seen.
units::sample_t	next_expected_transport_position_
	Next expected transport position (for detecting jumps).

Detailed Description

Base class for timeline data providers.

Provides common functionality for all timeline data provider types. This is an abstract base class that defines the interface that all derived provider classes must implement.

Definition at line 26 of file timeline_data_provider.h.

Member Typedef Documentation

◆ IntervalType

using zrythm::structure::arrangement::TimelineDataProvider::IntervalType = std::pair<units::sample_t, units::sample_t>

Definition at line 31 of file timeline_data_provider.h.

Constructor & Destructor Documentation

◆ TimelineDataProvider()

zrythm::structure::arrangement::TimelineDataProvider::TimelineDataProvider ( QObject * parent = nullptr )

inlineexplicit

Definition at line 33 of file timeline_data_provider.h.

Member Function Documentation

◆ generate_events()

template<ClipObject ClipType>

void zrythm::structure::arrangement::TimelineDataProvider::generate_events	(	this auto &	self,
		const dsp::TempoMap &	tempo_map,
		utils::RangeOf< const ClipType * > auto	clips,
		utils::ExpandableTickRange	affected_range )

inline

Generate the event sequence to be used during realtime processing.

To be called as needed from the UI thread when a new cache is requested.

Template Parameters

ClipType Either MidiClip, AudioClip, ChordClip, or AutomationClip

Parameters

self	The derived class instance (explicit this parameter)
tempo_map	The tempo map for timing conversion.
clips	The clips to process.
affected_range	The range of ticks to process.

Definition at line 52 of file timeline_data_provider.h.

Field Documentation

◆ last_seen_transport_state_

dsp::ITransport::PlayState zrythm::structure::arrangement::TimelineDataProvider::last_seen_transport_state_

protected

Initial value:

{
    dsp::ITransport::PlayState::Paused
  }

Last transport state we've seen.

Definition at line 134 of file timeline_data_provider.h.

◆ next_expected_transport_position_

units::sample_t zrythm::structure::arrangement::TimelineDataProvider::next_expected_transport_position_

protected

Next expected transport position (for detecting jumps).

Definition at line 139 of file timeline_data_provider.h.

The documentation for this class was generated from the following file:

src/structure/arrangement/timeline_data_provider.h
